Zeiss (Oberkochen)

click on the images to see a larger picture

Brunel Microscopes Ltd, Unit 2 Vincients Road, Bumpers Farm Industrial Estate, Chippenham, Wilts SN14 6NQ. Tel: 01249 462655. mail@brunelmicroscopes.co.uk

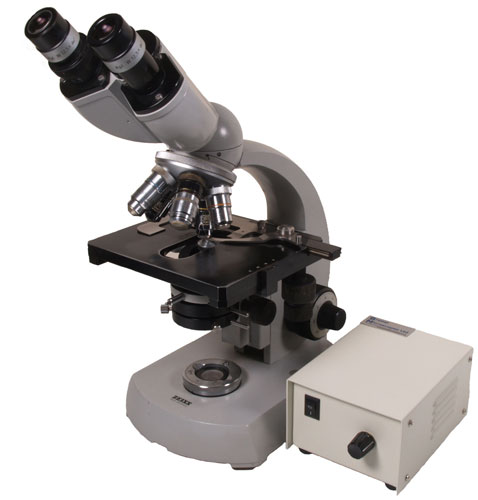

Zeiss  Binocular

A Carl Zeiss binocular biological microscope In excellent condition and all original. For those wanting a quality microscope without unnecessary complication this is an ideal instrument.  x10 wide field eyepieces with x3.2, x10, x40 and x100 (oil immersion) objectives giving a magnification range of x32 to x1000. Mechanical stage with coaxial controls and a fixed condenser lens that has a flip in/out lower lens to make the condenser appropriate for the objective being used. Coaxial coarse and fine focus controls. 6v 20 watt tungsten illumination with brightness control. A very nice well made microscope.


Price £195.83 + vat

Zeiss IM35 Inverted Microscope

This can best be described as a ‘mighty’ microscope. One of the heaviest of the Zeiss stable, this microscope was designed for stability - and it worked! An inverted binocular instrument that is all original apart from a x4 Nikon objective. We have the instruction manual for this microscope which the buyer will be pleased to have! The IM35 has a camera port to the font of the microscope which currently has an Olympus film SLR camera back in place. The mechanical stage has an extra long coaxial movement control stem which is linked to be flexible to prevent damage. 12 volt 60 watt Kohler illumination system. Objectives Nikon x4, Zeiss x10 ,x40 and x10 phase with a slide phase contrast ring plate in the light path condenser system. Kpl x12.5 eyepieces. Good condition - a microscope for the enthusiast.


SOLD

click on the images to see a larger picture

Before the unification of Germany, there were two Zeiss factories. Carl Zeiss located in Oberkochen and Carl Zeiss GmbH located in Jena. This section is for the Oberkochen products often referred to as West German Zeiss.

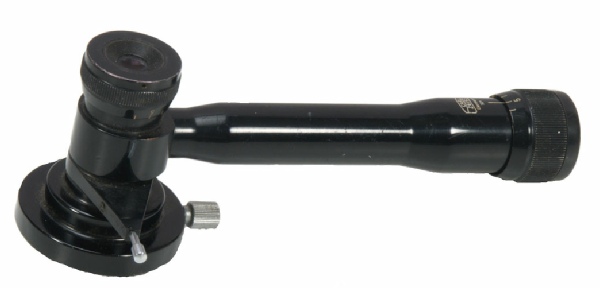

Zeiss Demonstration Eyepiece

A Carl Zeiss teaching eyepiece adapter. The central eyepiece fits into the standard eyetube of any monocular microscope. It has a pointer system that can be introduced into the field of view and mov ed to point out specific parts of the slide being studied. On the end of the side tube is a second eyepiece which has independent focusing which ensures the image is in focus for both observers. Date from approximately 1950 but still works perfectly.

Price £33.33 + vat

Zeiss Winkel Photosystem

Carl Ziess was briefly marketed as Ziess Winkel during the mid 1950’s which dates this accessory quite accurately. Still in excellent working condition the unit will fit over the trinocular eyetube or monocular eyetube of the microscope and the parallax focusing system, which has a focusing lines and field of view lines, enables accurate focus for the film plane. Inbuilt timer shutter release with cable. The film plate back has been well used but still fits securely in place. A collector’s piece.

Price £112.50 + vat

Carl Zeiss Drawing Attachments

Drawing attachments are much sought after these days by illustrators but sadly none of the principal manufacturers make them in this digital day and age. This Zeiss unit is in good condition with the element that views the drawing paper having independent focusing and the option to rotate to accommodate drawing paper at an angle.

Price £162.50 + vat

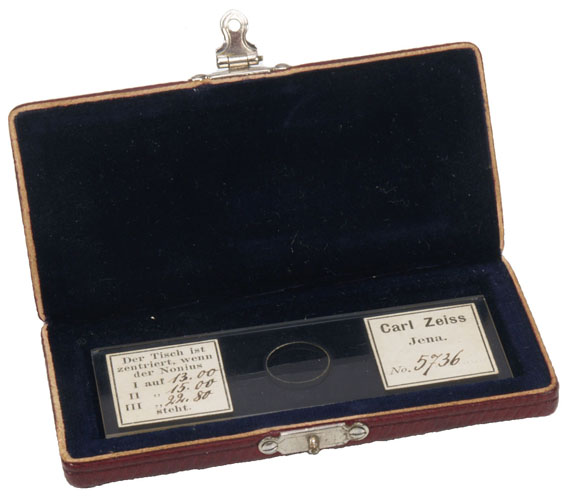

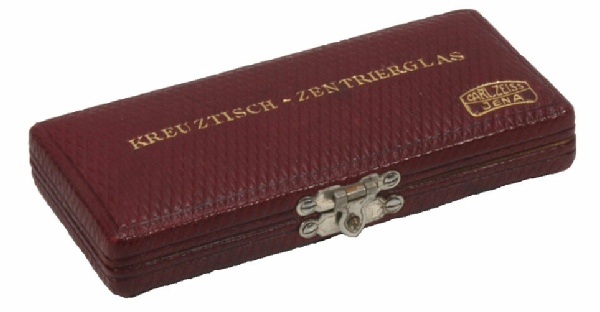

Zeiss Jena Centring Slide

We have included this Zeiss Jena item here because of its rarity value. Dating from about 1920 this is a numbered cross hair slide used for centring the rotating circular stages of polarising microscopes. Its presentation box is in truly excellent condition. A collectors item.

Price £154.17 + vat

Carl Zeiss Trinocular

One of the classic Zeiss laboratory microscopes. Finished in grey enamel and in good condition apart from the inevitable scuffs on the stage caused by slide movements during the years. 6 volt 20 watt quartz halogen Kohler illumination. Trinocular photography tube with push/pull lever. Large mechanical stage with drop down coaxial controls. Focusing substage condenser with flip top lens, iris diaphragm and lateral adjusters. Coaxial coarse and fine focus controls. x8 wide field eyepieces. x10 neofluar  (n.a. 0.30), x16 neofluar (n.a. 0.40), phase contrast x40 neofluar (n.a. 0.75) and plan x100 neofluar oil immersion (n.a. 1.30). An excellent optical specification all original

Price £341.17 + vat

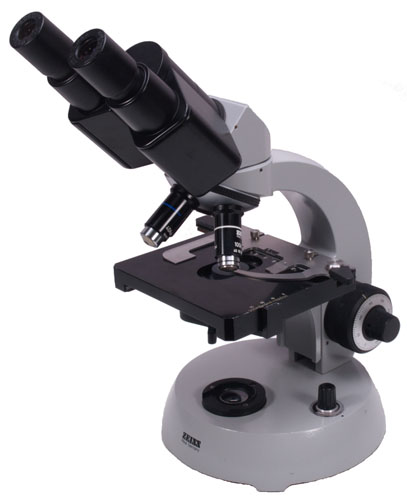

Carl Zeiss Binocular

A classic Zeiss binocular microscope that is now a vintage collectors piece and all original. It is an attractive instrument finished in black enamel which polishes extremely well with only a few small chips to the edge of the base. 6 volt  20 watt Kohler illumination system. Large mechanical stage with side arm coaxial controls. Substage focusing condenser with flip top lens and iris diaphragm. The chrome controls are in excellent condition. Objectives x6.3 plan (n.a. 0.16), x16 plan (n.a. 0.32), x40 plan (n.a. 0.65) and x100 plan oil immersion with internal iris diaphragm (n.a. 1.25). Kpl widefield x10 eyepieces

Price £329.17 + vat

Carl Zeiss Trinocular

Another  classic Zeiss laboratory microscopes. Finished in grey enamel and in good condition apart from the inevitable scuffs on the stage caused by slide movements during the years. 6 volt 20 watt quartz halogen Kohler illumination. Trinocular photography tube with push/pull lever. Large mechanical stage with drop down coaxial controls. Focusing substage condenser with flip top lens, iris diaphragm and lateral adjusters. Coaxial coarse and fine focus controls. x10 wide field eyepieces. x10 neofluar  (n.a. 0.30), x40 neofluar (n.a. 0.75), phase contrast x40 neofluar (n.a. 0.75) and plan x100 neofluar oil immersion (n.a. 1.30). All original.

Price £333.33 + vat
