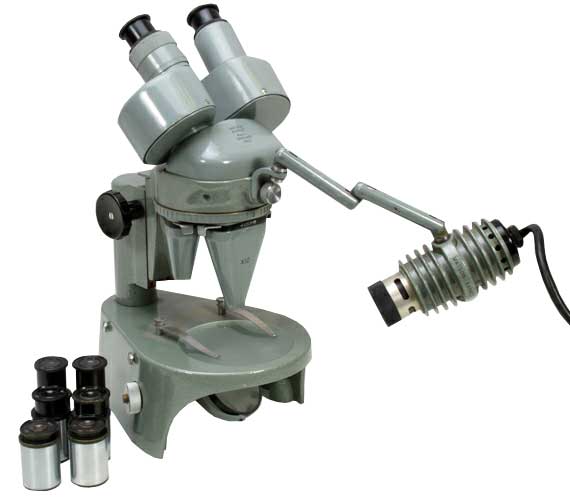

Watson Stereomicroscope

A very nice example of this classic Watson stereo, with a very well thought out design. Finished in blue/grey enamel, the turret mounted objectives are x2.5, x5 and x10 and are matched with two pairs of eyepieces - , x10 and x14 giving a magnification range of x25 to x140. The microscope has a jointed quite long flexible light unit that can provide either incident illumination or is potentially long enough to shine light onto the substage mirror system to provide transmitted light. Dating from around 1960 this is a nice instrument.

Price £229.17 + vat



sold

Watson Stereomicroscope

A excellent example of this classic British microscope. Rotating turret with x2.5, x5 and x10 objectives which with the x10 eyepieces gives magnification options of x25, x50 and x100. The unit has its original arm rests and an ingenious ‘gliding’ stage system which allows the top plate to be moved in any direction. Mirror through the base illumination. Complete with original wooden case.

SOLD

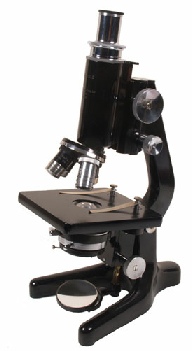

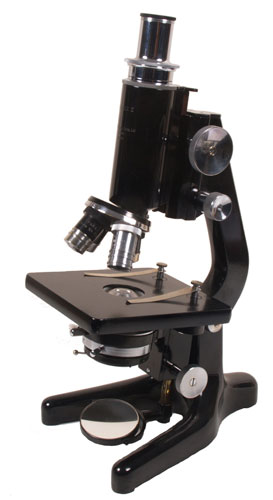

Watson Service Stand

A Watson service stand only, serial number 90564. No objectives, but complete with condenser and mirror triple turret, plain stage with slide clips. very good chrome and general body work..

Price £45.83+ vat

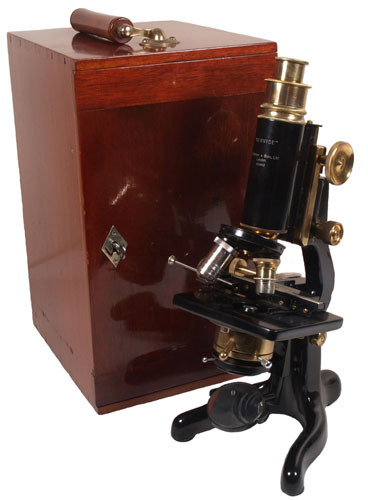

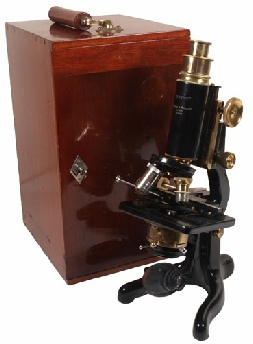

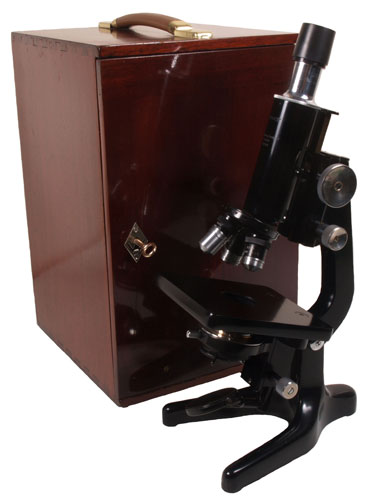

Watson Service 11

An all original Watson Service 11. The stage, body and chrome of this microscope are excellent and all original. Objectives x40 and 16mm. Ex Zoology department of UCL.  Original wooden case although the strap shows  the signs of age.

Price £120.83+ vat

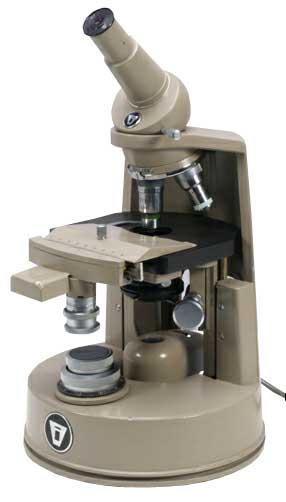

Vickers Patholette

In its day this was probably the microscope of choice for education and schools and there are many used examples. However this one is in very good condition and is now clearly a collectors item. All original with objectives x4, x10, x40 and x100 (oil) with x10 eyepiece. Mechanical stage, condenser with flip top lens coaxial coarse and fine focus. Light unit.

Price £187.50 + vat



sold

Reichert Binocular

A classic microscope badged ‘Shandon Scientific’ and in very good condition. Large stable stand in the classic Reichert mould with low position coaxial coarse and fine focus controls. Large mechanical stage with separate side arm X and Y controls. Lamp unit providing full Kohler illumination. 160mm tube length objectives x4 (n.a. 0.08), x10 (n.a. 0.25), x45 (n.a. 0.65) and x63 fluorite with coverslip correction with x10 eyepieces give a magnification range of x40 to x630. Condition very good and excellent collectors microscope. Original Reichert branded case.

Price £329.17 + vat



B&W Stereoscope

This is not a microscope, but an optical system to produce 3D images from 2 photographs that were taken originally from slightly different angles. This type of equipment was very popular in Edwardian times for home use. However this particular unit appears from the case markings to have been used during the 2nd World War to have been used to study bomb damage from aerial photographs. All complete and original with full instructions attached to the lid of the case. A very rare item in excellent condition.

Price £300 + vat




Reichert Viewing Screen

A rare accessory these days, this is a frosted glass viewing screen that will fit the Reichert Zetopan microscope series. The unit is complete with screen shade and its original case.

SOLD

Baker Monocular

A good example of this classic Baker microscope. All original with objectives x3, x10, x40 and x100 (oil immersion) with x10 eyepiece. Mechanical stage with central drop down coaxial controls. Coaxial central coarse and fine focus controls on the base. Focusing substage condenser with centring controls and iris diaphragm. 240v mains illumination. The only negative is a few small paint chips low on the base.

Price £179.17 + vat

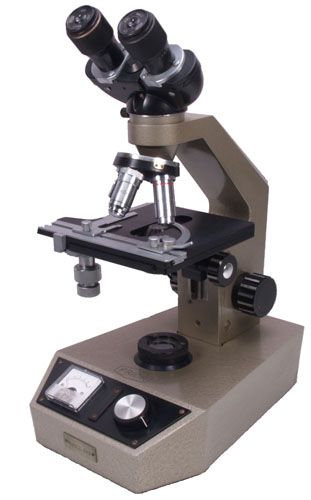

CTS Binocular

This binocular compound microscopes dates from the time when British microscope manufacture was realigning itself. As a result this CTS has some Vickers, Bake and Cooke Baker components. The microscope is all original and in good condition and fully functional. CTS serial number M154147 with x8 compensating eyepieces. Objectives x5 Vickers, x10 Baker, x40 microplan Cooke Baker and x100 (oil) Cooke Baker (numerical aperture 1.30) . Full substage condenser, mechanical stage and light unit (Vickers transformer). Very good condition.

Price £208.33 + vat




Watson Stereomicroscope

A good example of this classic British stereomicroscope finished in black which is a relatively unusual livery for Watson instruments. The body work is good as is the mechanical performance although there is some slight ‘pickling’ around the edge of the mirror which is to be expected in a microscope of this age. There are three objective sets on the rotating turret giving x1.5, x2.5 and x5 magnification. Two pairs of eyepieces - x5 and x10 which allows a magnification range of  x7.5 to 50. There is a substage mirror for transmitted lighting.

Price £120.83 + vat




Nikon Inverted Biological Binocular

This is one of the original Nikon microscopes in black livery and in striking condition for its age. The microscope is all original apart from a x4 Olympus objective. The light source is 12volt 100 watt halogen with a separate transformer box. The focusing condenser element is complete with iris diaphragm and a Zernicke phase contrast condenser. The stage has drop down coaxial controls with a double vernier scale and the stand has coaxial coarse and fine focus. There is a side port behind the binocular head for attachment of a camera. The plan objectives are x4 (Olympus) x10 (phase contrast), x20 (phase contrast) and a coverslip corrected x40 Nikon. The binocular head has interpupillary and dioptric adjustment with x10 wide field Nikon eyepieces.


Price £304.17 + vat



Watson Bactil Binocular

The Watson Bactil is in truth an iconic microscope with the earlier models finished in black livery and the later versions in white. This example has the serial number 122220 and is in reasonable condition for its age. An ideal microscope for those starting a collection because this is an ‘all original’ microscope. Objectives x10, x50 and x100 with x6 eyepieces. Mechanical stage and full substage condenser with iris and filter carrier. This unit has all the mechanical refinement associated with the Bactil ‘brand’ - the dovetail moving head and the inter papillary adjustment mechanism being just two of these.

Price £183.33 + vat




CTS Polarising Microscope

A Cooke Troughton and Simms Polarising microscope in very good condition for its age. However there are no objectives with this unit that takes individual spring loaded objectives. Nevertheless its general condition and the fact that it still has its mica retardation plate makes it a genuine collectors piece. Its value will of course significantly increase with CTS polarising objective. The microscope has a Bertrand lens, in/out analyser and a rotating substage polariser. Mirror illumination. Serial number 701941. Complete with original provenance card.

SOLD

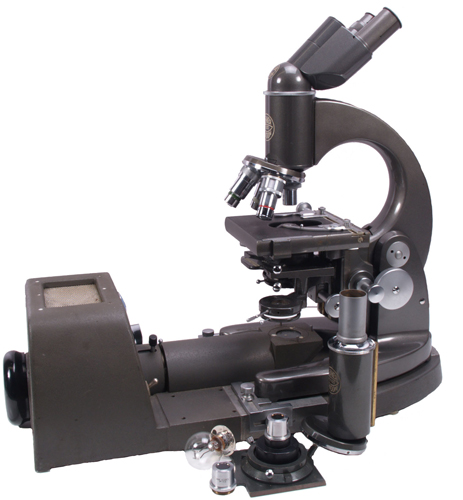

Reichert Zetopan

The Reichert flagship microscope from a bygone age (circa1960) when modular microscopes were just that. The accessories and ‘add ons’ for these microscopes were very numerous which allowed them to be used for the full range of microscopy applications including biological, polarising and metallurgical. This unit is equipped for biological transmitted illumination but the potential for an incident path way is  available in the lighting options, and would just require the optical path accessory. 100 watt halogen light source allowing Kohler illumination. All original 160mm objectives. x10 phase (0.25), x25 phase (0.45), x40 phase with iris diaphragm (0.65) and x100 phase (1.25). Full Zernicke phase condenser. X12.5 eyepieces. Condition good. This is a large microscope requiring considerable desk space.

SOLD


Home

Contact Us

How to Purchase

About Us

New Microscopes

Future Updates

Prepared Slides

Stereomicroscopes

Accessories

Antiques

Bargains

Books

Budget

Vintage

Eyepieces

Exlaboratory

Objectives

Other Equipment

Leitz/Leica

Wild

Olympus

Nikon

Zeiss

Baker Monocular

This microscope dates from the days that the principal microscope manufacturers began to merge their production lines. This Baker microscope is the same shape as Vickers models of the same time. This is all original in in good condition. Objectives x3, x10, x40 and x100 (oil immersion) with a x10 eyepiece. Mechanical stage with coaxial front positioned controls. Full substage condenser with flip top lens. Tungsten illumination. Front coaxial coarse and fine focus controls. A few small chips on the paint work but altogether a nice microscope.

Price £179.17 + vat

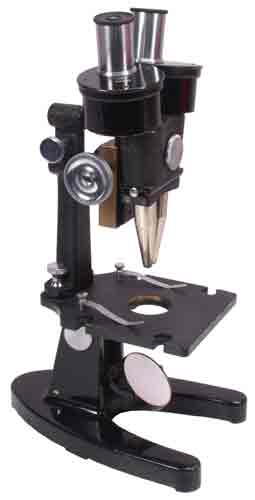

Beck Stereomicroscope

A Beck stereomicroscope dating from the 1930/40’s and in very good condition. Eyepieces x10 and an objective pair of 16mm objectives. Rack and pinion focus with a glass dissection area and substage mirror arrangement for transmitted lighting. This is an all original antique with a ‘crinkle’ black paint finish and in good condition.

Price £100.00 + vat
