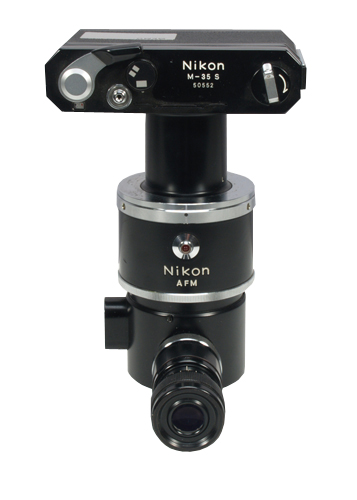

Nikon Photography System

In very nice condition this is a Nikon AFM film camera photosystem with a Nikon M-35S camera back. Parallax focus system with target eyepiece. Standard Nikon fitting. A collectors piece.


Price £170.83+ vat

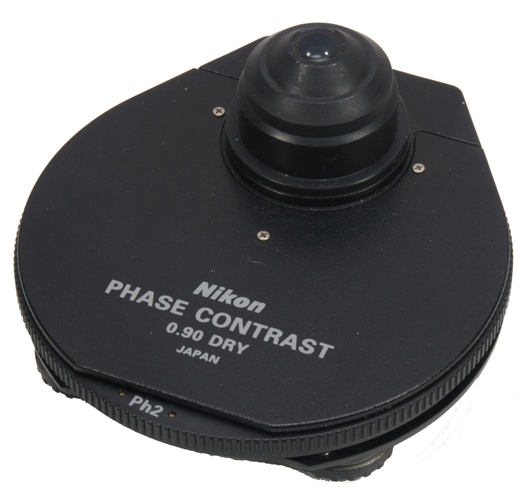

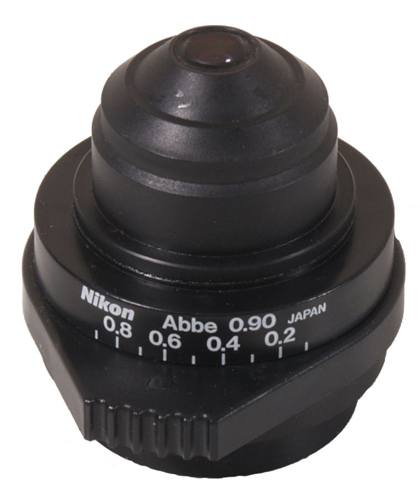

Nikon Phase Contrast Condenser

In excellent condition, this is a Nikon Zernike phase condenser with bright field and phase contrast positions for x10, x20, x40 and x100 infinity phase objectives. Numerical aperture 0.90


Price £137.50 + vat

Home

Contact Us

How to Purchase

About Us

New Microscopes

Future Updates

Prepared Slides

Stereomicroscopes

Accessories

Antiques

Bargains

Books

Budget

Vintage

Eyepieces

Exlaboratory

Objectives

Other Equipment

Leitz/Leica

Wild

Olympus

Nikon

Zeiss

Used Microscopes

A web site owned and maintained by Brunel Microscopes Ltd

Nikon

click on the images to see a larger picture

Brunel Microscopes Ltd, Unit 2 Vincients Road, Bumpers Farm Industrial Estate, Chippenham, Wilts SN14 6NQ. Tel: 01249 462655. mail@brunelmicroscopes.co.uk

click on the images to see a larger picture

Nikon is a Japanese microscope manufacturer of a range of quality instruments including super resolution, confocal and live cell screening systems.

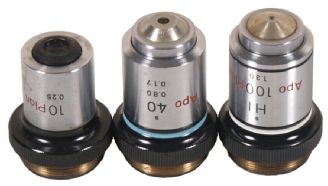

Set of Nikon  Objectives


This is a set of Nikon quality objectives that are optically suitable for the Nikon ‘S’ type microscopes. They are in excellent condition and are marked x10 plan (0.25), x40 Apo plan (0.80) and x100 Hi plan (1.30) oil immersion. 160mm tube length and corrected for 0.17mm coverslip thickness.


Price £91.67 + vat

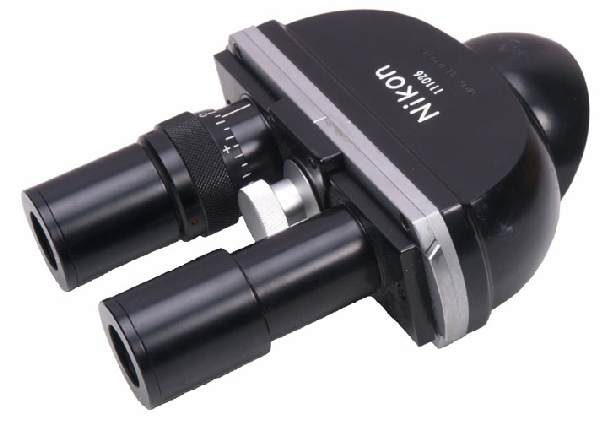

Nikon  Binocular Head

A Nikon binocular head complete with Nikon eyepieces Fits the older style N series microscopes. Finished in black and in good condition. Interocular and dioptric adjustments. x10 wide field eyepieces with integral eyecups.


Price £95.83 + vat

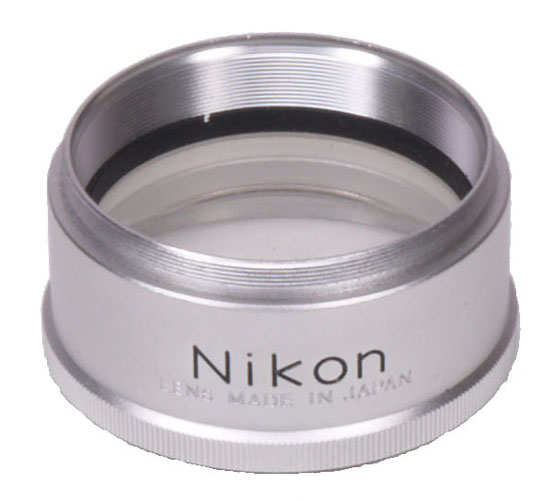

Nikon Auxiliary Objective lens

In excellent condition this is an unused Nikon supplementary objective x0.4. This will reduce by a  the microscope magnification range and increase the working distance.


Price £20.83 + vat

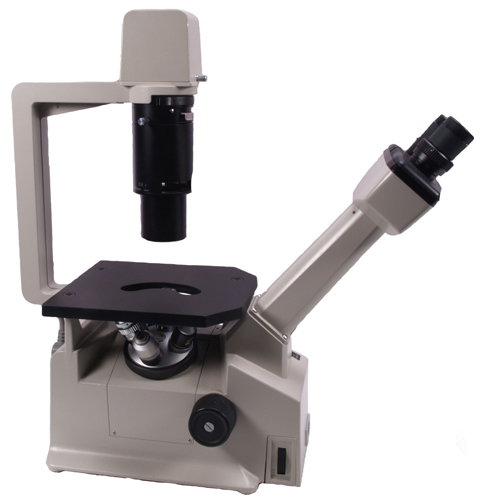

Nikon TMS Inverted Binocular Microscope

The TMS is one of the classic Nikon microscopes that were built specifically for the examination of tissue cultures. This is a very good example of the TMS and is all original. x10 wide field eyepieces set well above the stage plate. The microscope has rheostat controlled 6v 20watt halogen illumination. This TMS has a good turret of objectives that are all 160mm tubelength.



 This is an excellent microscope at a very realistic price considering its heritage


Price £495.83 + vat

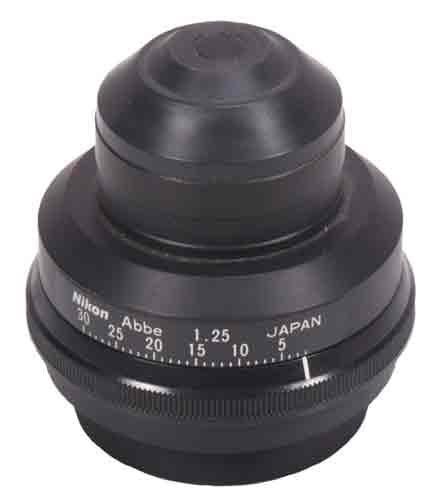

Nikon Abbe Condenser

A flange fitting relatively modern Abbe condenser with an integral  iris diaphragm and a numerical aperture of 1.25. Condition excellent


Price £46.67 + vat

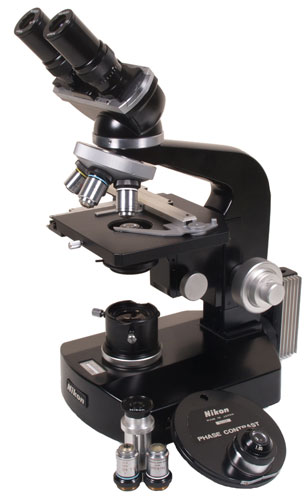

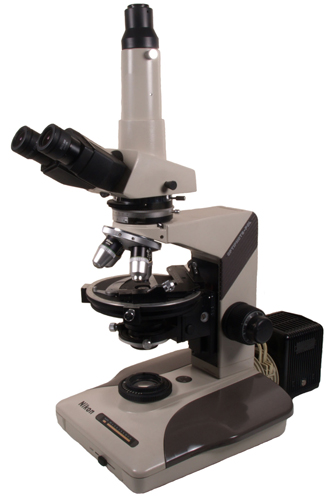

Nikon Phase Contrast Trinocular Microscope


On 4 November 1953 Frits Zernike was awarded the Nobel Prize for Physics for his invention of the phase contrast microscope. This precipitated the major microscope manufactures to produce instruments that could achieve this effect. There were copyright issues involved in this as both Leitz and Nikon of course realised. This microscope is truly a collectors item. It is Nikons early attempt to provide a microscope that involved the phase contrast mechanism at a price that was affordable. In addition they very cleverly involved polarisation.


Traditionally phase contrast  requires different objectives with retardation rings within the lenses of the objective (usually made from silver) that match with phase rings in the condenser. This system on the other hand has a phase contrast condenser with appropriate phase rings and a bright field setting. Then the  microscope has a slider mechanism that has a series of phase rings that can introduced into the optical path of the standard bright field objectives. Put simply this is a very clever idea. The standard bright field objectives can be allowed to function normally and then with the slider mechanism built into the optical path, phase rings could be introduced as required. It has to be said that it is difficult to understand why this system was not carried forward. However this means that the microscope remains a very important collectors item.


Nevertheless way back in the late 1960's Nippon Kogaku (Nikon) introduced the "polanret" type phase system of their own, intended for use on their Model "S" series of stands. However, unlike the later AO system the Nikon system was simple, compact and rather affordable. It also distinguished itself by creating user-controllable interference colours in the phase images! Apparently just to ensure that potential users had no idea what it was, they called their marvellous new creation, Nikon "Interference Phase Contrast" (or, more simply, "IPC")


This particular unit has the benefit of having an LED conversion system which extends it as a functional unit for the years to come, and its value will continue to rocket as a collectors item over the coming years.



Price £729.17 + vat

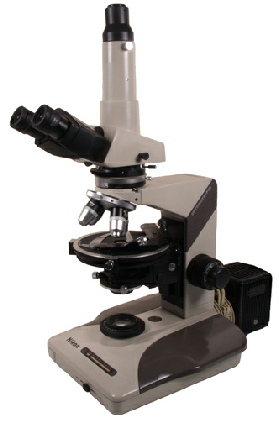

Nikon Phase Contrast Trinocular Microscope


On 4 November 1953 Frits Zernike was awarded the Nobel Prize for Physics for his invention of the phase contrast microscope. This precipitated the major microscope manufactures to produce instruments that could achieve this effect. There were copyright issues involved in this as both Leitz and Nikon of course realised. This microscope is truly a collectors item. It is Nikons early attempt to provide a microscope that involved the phase contrast mechanism at a price that was affordable. In addition they very cleverly involved polarisation.


Traditionally phase contrast  requires different objectives with retardation rings within the lenses of the objective (usually made from silver) that match with phase rings in the condenser. This system on the other hand has a phase contrast condenser with appropriate phase rings and a bright field setting. Then the  microscope has a slider mechanism that has a series of phase rings that can introduced into the optical path of the standard bright field objectives. Put simply this is a very clever idea. The standard bright field objectives can be allowed to function normally and then with the slider mechanism built into the optical path, phase rings could be introduced as required. It has to be said that it is difficult to understand why this system was not carried forward. However this means that the microscope remains a very important collectors item.


Nevertheless way back in the late 1960's Nippon Kogaku (Nikon) introduced the "polanret" type phase system of their own, intended for use on their Model "S" series of stands. However, unlike the later AO system the Nikon system was simple, compact and rather affordable. It also distinguished itself by creating user-controllable interference colours in the phase images! Apparently just to ensure that potential users had no idea what it was, they called their marvellous new creation, Nikon "Interference Phase Contrast" (or, more simply, "IPC")


This particular unit has the benefit of having an LED conversion system which extends it as a functional unit for the years to come, and its value will continue to rocket as a collectors item over the coming years.



Price £729.17 + vat

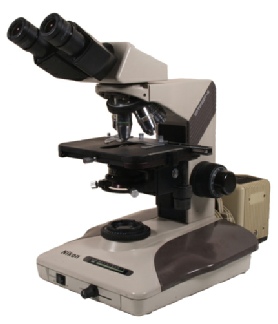

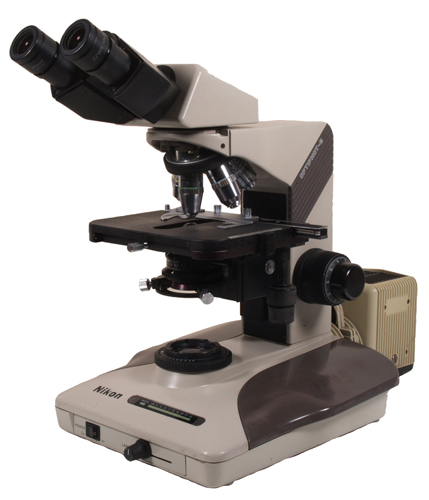

Nikon Optiphot 2 Binocular


The Nikon Optiphot series were considered amongst the best and most durable of microscopes and were principally responsible for elevating Nikon into prominence as one of the leading manufacturers of quality microscopes. The Optophot 2 was introduce in the early 1990’s and is still widely used professionally today because of its durability. It is unmistakable because of the leatherette wrist supports on either side of the base. This is a binocular version with its original EPlan objectives in very good condition: x4 (0.10), x10 (0.25), x20 (0.40), x40 (0.65) and x100 oil immersion (1.25) couples with CFWN wide field x10/20 eyepieces.


The Kohler illumination system has an external light box housing a 12 volt 100 watt lamp. The front of the stand has the brightness control system that responds with an LED line which reflects the lamp brightness and there is also a photography override button to provide optimum illumination.


The ‘leatherette’ inserts in the base were design for wrist comfort when using the focus controls, as a result watches and bracelets do tend to leave their marks although on this unit they are quite reasonably preserved. As would be expected there are a few small chips to the paint enamel on the base. A Nikon classic at a very good price.



Price £383.33 + vat



Nikon Labophot Phase Contrast Binocular


The Labophot series were date from the same period as the Optiphot, but has a slightly smaller stand and an internal lamp housing system. This unit has a full Zernike phase contrast system and is optically in first class condition. It has been well used in its lifetime and the base does show signs of this with several chips to the enamel paint. Nevertheless, it is a fine optical microscope. The Zernike phase contrast condenser has a bright field position and the usual adjustment system for the phase rings. The original Nikon objectives are x4 (0.10), x10 (0.25) phase, x20 (0.40) phase, x40 (0.65) phase and x100 (1.25) phase oil immersion and are couples with CFW x10 eyepieces.


The Kohler illumination system has an internal 6 volt 20 watt halogen lamp unit with a wheel system behind the field lens that controls the field iris diaphragm. Phase contrast Labophot's do not come up that often



SOLD

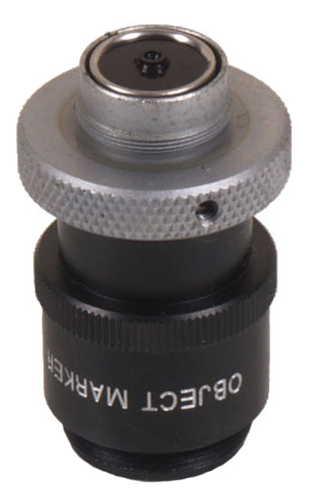

Nikon Slide Marker


This is an ingenious device for marking areas of interest on coverslipped slides. Often used in path labs for marking areas of tissue or cervical smears for further discussion.  It has a standard RMS screw thread at one end so that it can be fitted to the objective turret of any microscope. At the other end is a felt ring impregnated with black ink which is spring loaded so you can lower it onto the slide and rotate it to leave a black circle over the interesting part.



Price £58.33 + vat



Nikon Achr-Apl Condenser (2299)


This is a modern flange fitting Nikon condenser. An Achro- Aplanatic unit with a potential numerical aperture of 1.4. Iris diaphragm condition excellent



Price £75.00 + vat



Set of Nikon BM Objectives


This is a set of Nikon phase contrast objectives that are optically suitable for the Nikon ‘S’ type microscopes. These are in excellent condition and are marked x20 (0.40), x40 Apo (0.80) and x100 Hi (1.25) oil immersion. 160mm tube length and corrected for 0.17mm coverslip thickness. Condition excellent



SOLD
